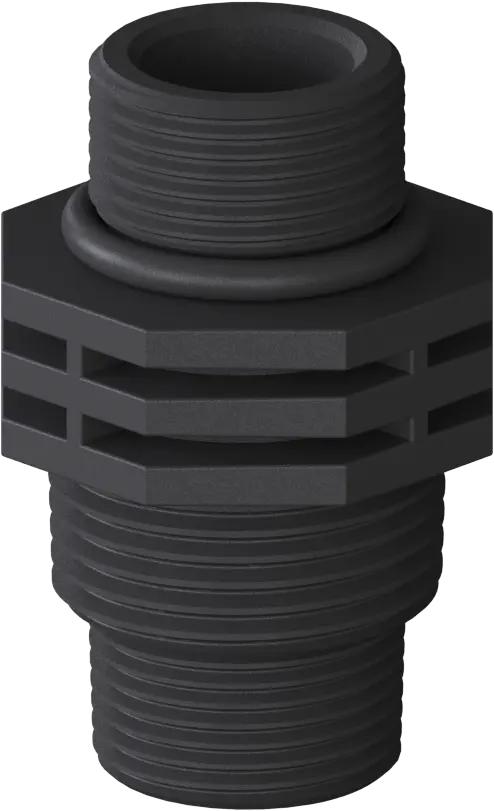

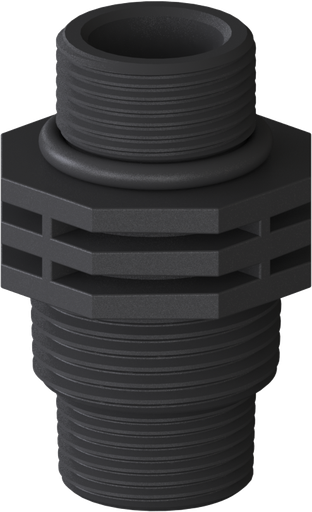

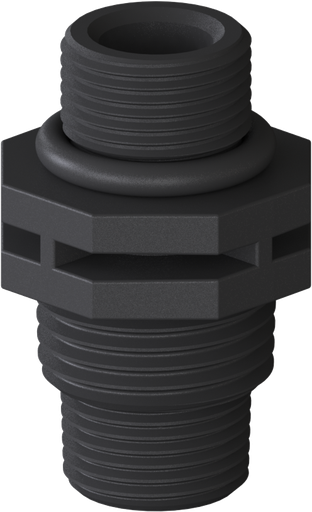

Adapters - for mounting adsorbers on existing threads.
Simple screw-on solution
No modifications to the system required
Perfect for easy adsorber installation on hydraulics, gears, barrels & IBC
BUY ONLINE HOW IT WORKS INSTALLATION TECHNICAL DATA DOWNLOADS
Assembly made easy.
Most systems have pre-drilled threads on the tank for mounting an adsorber. This is where adapters come into play, connecting the system and the adsorber.
How it works.
Adapters, sleeves, and reductions are used to connect adsorbers to various existing thread types. They come with two different threads — one for screwing into the system and the second for screwing on the adsorber.
Installation.

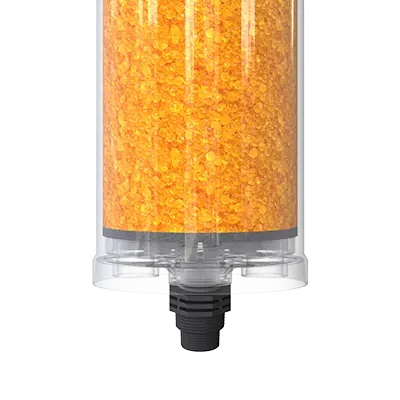

Step 1: Adapter
Screw the adapter into the adsorber.

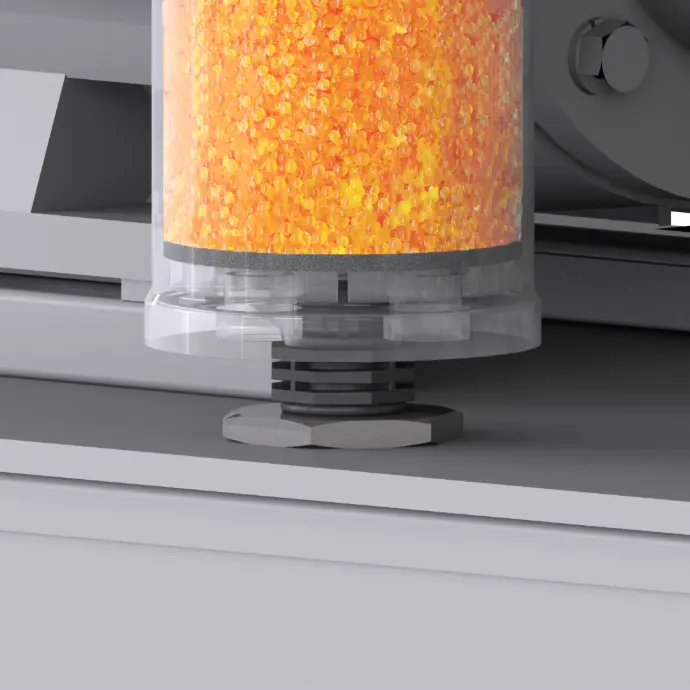

Step 2: Installation on the system
Screw the adsorber onto the connection point provided for this purpose on your system using the adapter.
Technical data.
 |
 |
|
|---|---|---|
| ADAPTER | PA G3/8"m - R1/2"m-R3/4"m | PA G3/4"m - R1"m-R3/4"m |
| MATERIAL | PA | PA |
| TOTAL WEIGHT (KG) |
0,01 | 0,04 |
| HEIGHT (MM) |
42 | 63 |
| DIAMETER (MM) |
27 | 41 |
|
|
|
|---|---|---|
| ADAPTER | PA G3/8"m - R1/2"m-R3/4"m | PA G3/4"m - R1"m-R3/4"m |
| MATERIAL | PA | PA |
| TOTAL WEIGHT (KG) |
0,01 | 0,04 |
| HEIGHT (MM) |
42 | 63 |
| DIAMETER (MM) |
27 | 41 |
|
|
|
|---|---|---|
| 适配器 | PA G3/8"m - R1/2"m-R3/4"m | PA G3/4"m - R1"m-R3/4"m |
| 材质 | PA | PA |
| 总重量 (千克) |
0,01 | 0,04 |
| 高度 (毫米) |
42 | 63 |
| 直径 (毫米) |
27 | 41 |
|
|
|
|---|---|---|
| 适配器 | PA G3/8"m - R1/2"m-R3/4"m | PA G3/4"m - R1"m-R3/4"m |
| 材质 | PA | PA |
| 总重量 (千克) |
0,01 | 0,04 |
| 高度 (毫米) |
42 | 63 |
| 直径 (毫米) |
27 | 41 |
